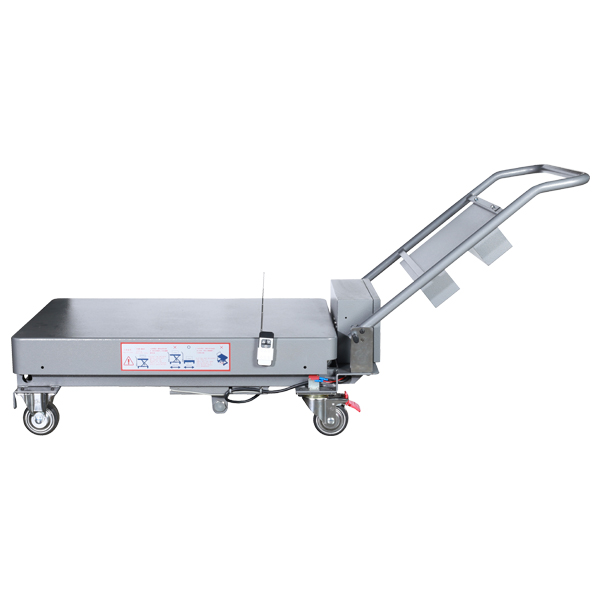

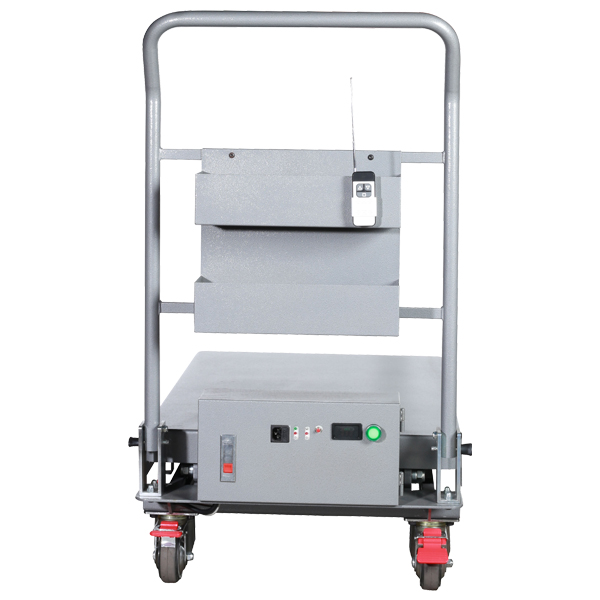

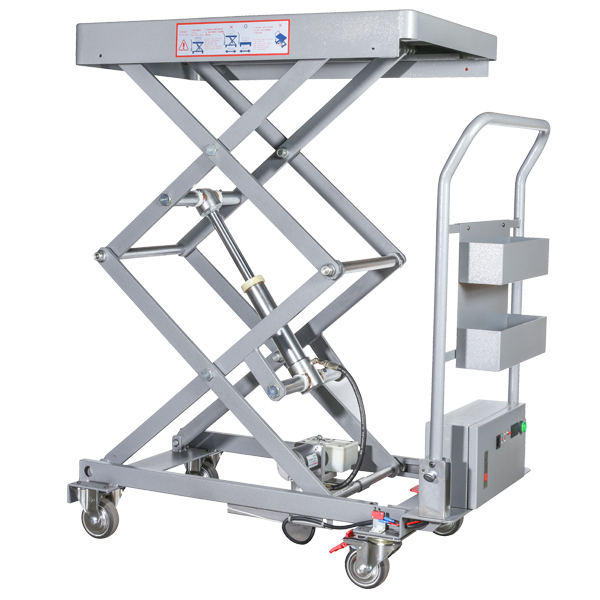

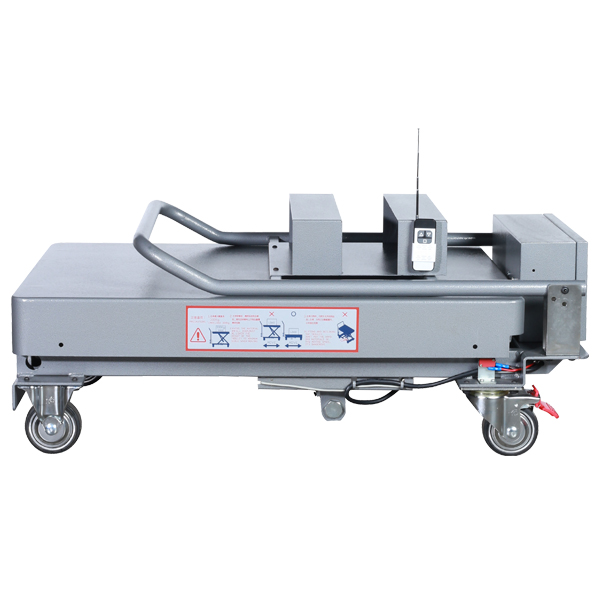

B-300 Car Repair Electric lifting trolley

Features

• The maximum load is 300 kg, and the maximum height can be 128cm.
• Fast charging, fully charged in 8 hours.
• Use wireless remote control, easy to control.
• DC24V DC motor.

Specification Table

Size: 1030 x 600 x 375mm
Maximum height: 1280mm
Minimum height: 290mm
Weight: 122kg
Maximum load weight: 300kg
Control method: wireless remote control
Power source: valve regulation, lead-acid battery
Operating voltage: 23.5V ~ 26.5V
Use current: 3A ~ 12A
Charging voltage: 100V ~ 220V
Charging time: 4 hours for fast charge, 8 hours for full charge
Use times: about 70 times with a load of 300kg, about 100 times with a load of 150kg
Rise time: up to a maximum of about 30 seconds

B-300 Car Repair Features

This product's motor parts, hydraulic pumps, and hydraulic cylinders are not damaged by humans. The warranty period is 1 year

宇震有限公司電動升降機台車、電動升降手推車

Use wireless remote control器

宇震有限公司電動升降機台車、電動升降手推車

Maximum load 300 kg

宇震有限公司電動升降機台車、電動升降手推車

Maximum elevation 1280mm

宇震有限公司電動升降機台車、電動升降手推車

Use DC24V DC motor

Products Picture

Video

Yuzhen B-300 Car Repair Electric Lifting Trolley
Won the Taiwan Excellence Award Certification
Will be your best partner for work
Give you a quick job completion

Patent

This product has been applied for
Taiwn, United States, Germany, China

U.S. invention patent

U.S. invention patent

China invention patent

Germany invention patent

Taiwn invention patent
